0MAXIMUM POWER OUTPUT : 545W
POSITIVE POWER TOLERANCE : 0~+3%
MAXIMUM EFFICIENCY : 21.1%
Advanced module technology delivers superior module efficiency
● Gallium-doped Wafer
● Non destructive cutting
● MBB half-cut
Excellent power generation performance
● Excellent IAM and low Irradiotion performance
● Lower temperature coefficient
● 0.45% linear Power decline
High module quality ensures long-term reliability
● Strict selected material
● Advanced technology
● Leading stondod
Ultra-hydrophilic self-cleaning coating techniques
Power Range
Maximum Power Output
Positive Power Tolerance
Maximum Efficiency
 |  |
| Electrical Characteristics STO | RS6-535MXG-E3 | RS6-540MXG-E3 | RS6-545MXG-E3 |
| Maximum Power (Pmax) | 535W | 540W | 545W |
| Power Tolerance | 0~+5W | 0~+5W | 0~+5W |
| Module Efficiency | 20.71% | 20.90% | 21.10% |
| Maximum Power Current (Imp) | 12.85A | 12.92A | 12.99A |
| Maximum Power Voltage (Vmp) | 41.65V | 41.80V | 41.96V |
| Short Circuit Current (Isc) | 13.73A | 13.81A | 13.90A |
| Open Circuit Voltage (Voc) | 49.50V | 49.65V | 49.80V |
Values at Standard Test Conditions STC (AM1.5, Irradiance 1000W/m², Cell Temperature 25℃)
| Electrical Characteristics NOCT | RS6-535MXG-E3 | RS6-540MXG-F3 | RS6-545MXG-E3 |
| Maximum Power (Pmax) | 399.7W | 403.4W | 407.1W |
| Maximum Power Current (Imp) | 10.33A | 10.39A | 10.45A |
| Maximum Power Voltage (Vmp) | 38.69V | 38.83V | 38.97V |
| Short Circuit Current (Isc) | 10.91A | 10.98A | 11.04A |
| Open Circuit Voltage (Voc) | 46.54V | 46.68V | 46.82V |
NOCT, Irradiance of 800W/m², AM1.5, Ambient Temperature 20℃, wind Speed 1m/s.
| Electrical Characteristics with 21% rear side power gain | RS6-535MXG-E3 | RS6-540MXG-E3 | RS6-545MXG-E3 |
| Maximum Power (Pmax) | 647.4W | 653.4W | 659.5W |
| Maximum Power Current (Imp) | 15.54A | 15.63A | 15.72A |
| Maximum Power Voltage (Vmp) | 41.65V | 41.80V | 41.95V |
| Short Circuit Current (lsc) | 16.61A | 16.72A | 16.82A |
| Open Circuit Voltage (Voc) | 49.50V | 49.65V | 49.80V |

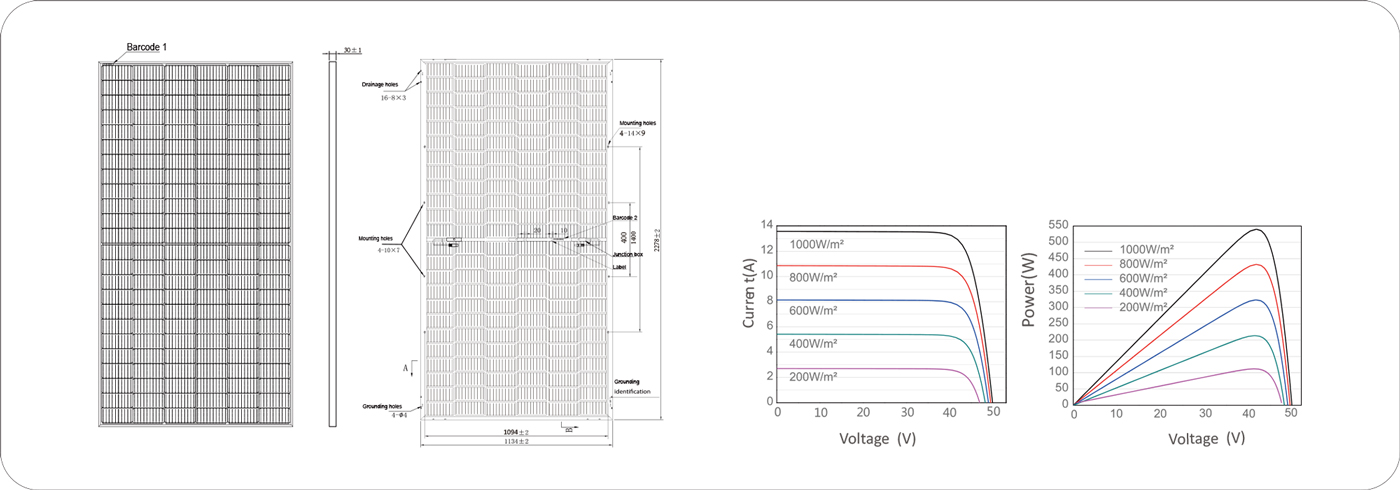

| Mechanical Characteristics | |
| Cell Type | MonoP-Type, 182x182(±1)mm, 144(6x24)Half-Cut cells |
| Glass | 2mm+2mm, High Transmission, Low Iron, Tempered Glass |
| Frame | Anodized Aluminum Alloy |
| Juction Box | IP68 Rated |
| Dimension | 2278×1134×30mm |
| Output Cable | 4 mm2(EU), 300 mm, length can be customized |
| Weight | 32.8kg |
| Connector | MC4 compitable |
Characteristics
Temperature Coefficient of VOC | -0.27%/℃ |
Temperature Coefficient of ISC | +0.048%/℃ |
Temperature Coefficient of PMAX | -0.35%/℃ |
Nominal Operating Cell Temperature (NOCT) | 45℃ ± 2℃ |
Remark: Electrical data in this catalog do not refer to a single module and they are not part of the offer. They only serve for comparison among different module types.
Packing Information
Container | 40' HQ |
Pallets per Container | 20 |
Pieces per Container | 720 |
Maximum Ratings
Operating Temperature | -40℃~+85℃ |
Maximum System Voltage | 1500VDC |
Maximum Series Fuse Rating | 30A |
Mainly distributed in countries and regions:Germany, Spain, Italy, Tunisia, France, Netherlands, United Kingdom, Austria, Switzerland, Czech Republic, Sweden, Australia, New ZealandSouth Africa, United Arab Emirates, Argentina, Brazil, Colombia, Canada, Malaysia, Singapore, Thailand, Vietnam, Japan
