0MAXIMUM POWER OUTPUT : 460W
POSITIVE POWER TOLERANCE : 0~+3%
MAXIMUM EFFICIENCY : 21.32%
Advanced module technology delivers superior module efficiency
● Gollium-doped Wofer
● Non destructive cutting
● MBB half-cut
Excellent power generation performance
● Excellent lAM and low irradiation performance
● Lower temperoture coefficient
● 0.55% lnear Power declline
High module quality ensures long-term reliability
● Strict selected material
● Advanced technology
● Leading standad
Ultra-hydrophilic self-cleaning coating techniques
Power Range
Maximum Power Output
Positive Power Tolerance
Maximum Efficiency
 |  |
| Electrical Characteristics STC | RS4-440MBG-E1 | RS4-445MBG-E1 | RS4-450MBG-E1 | RS4-455MBG-E1 | RS4-460MBG-E1 |
| Maximum Power (Pmax) | 440W | 445W | 450W | 455W | 460W |
| Power Tolerance | 0~+5W | 0~+5W | 0~+5W | 0~+5W | 0~+5W |
| Module Efficiency | 20.39% | 20.62% | 20.85% | 21.08% | 21.32% |
| Maximum Power Current (Imp) | 13.05A | 13.16A | 13.27A | 13.36A | 13.45A |
| Maximum Power Voltage (Vmp) | 33.72V | 33.82V | 33.91V | 34.06V | 34.20V |
| Short Circuit Current (Isc) | 13.73A | 13.79A | 13.86A | 13.93A | 14.01A |
| Open Circuit Voltage (Voc) | 41.02V | 41.10V | 41.18V | 41.33V | 41.48V |
Values at Standard Test Conditions STC (AM1.5, Irradiance 1000W/m², Cell Temperature 25℃)
| Electrical Characteristics NOCT | RS4-440MBG-E1 | RS4-445MBG-E1 | RS4-450MBG-E1 | RS4-455MBG-E1 | RS4-460MBG-E1 |
| Maximum Power (Pmax) | 327W | 331W | 335W | 339W | 342W |
| Maximum Power Current (Imp) | 10.43A | 10.49A | 10.55A | 10.61A | 10.67A |
| Maximum Power Voltage (Vmp) | 31.39V | 31.56V | 31.73V | 31.91V | 32.07V |
| Short Circuit Current (Isc) | 11.09A | 11.14A | 11.19A | 11.25A | 11.32A |
| Open Circuit Voltage (Voc) | 38.72V | 38.79V | 38.87V | 39.01V | 39.15V |
NOCT, Irradiance of 800W/m², AM1.5, Ambient Temperature 20℃, wind Speed 1m/s.
| Electrical Characteristics with 21% rear side power gain | RS4-440MBG-E1 | RS4-445MBG-E1 | RS4-450MBG-E1 | RS4-455MBG-E1 | RS4-460MBG-E1 |
| Maximum Power (Pmax) | 647W | 653W | 659W | 666W | 672W |
| Maximum Power Current (Imp) | 15.61A | 15.69A | 15.78A | 15.88A | 15.96A |
| Maximum Power Voltage (Vmp) | 41.50V | 41.65V | 41.80V | 41.95V | 42.10V |
| Short Circuit Curent (lsc) | 16.67A | 16.76A | 16.84A | 16.92A | 16.99A |
| Open Circuit Voltage (Voc) | 49.35V | 49.50V | 49.65V | 49.80V | 49.95V |
| Mechanical Characteristics | |
| Cell Type | MonoP-Type, 182x182(±1)mm, 120(6x20)Half-Cut cells |
| Glass | 2mm+2mm, High Transmission, Low Iron, Tempered Glass |
| Frame | Anodized Aluminum Alloy |
| Juction Box | IP68 Rated, With Bypass Diodes |
| Dimension | 1903×1134×30mm |
| Output Cable | 4 mm2(EU), 300 mm, length can be customized |
| Weight | 28kg |

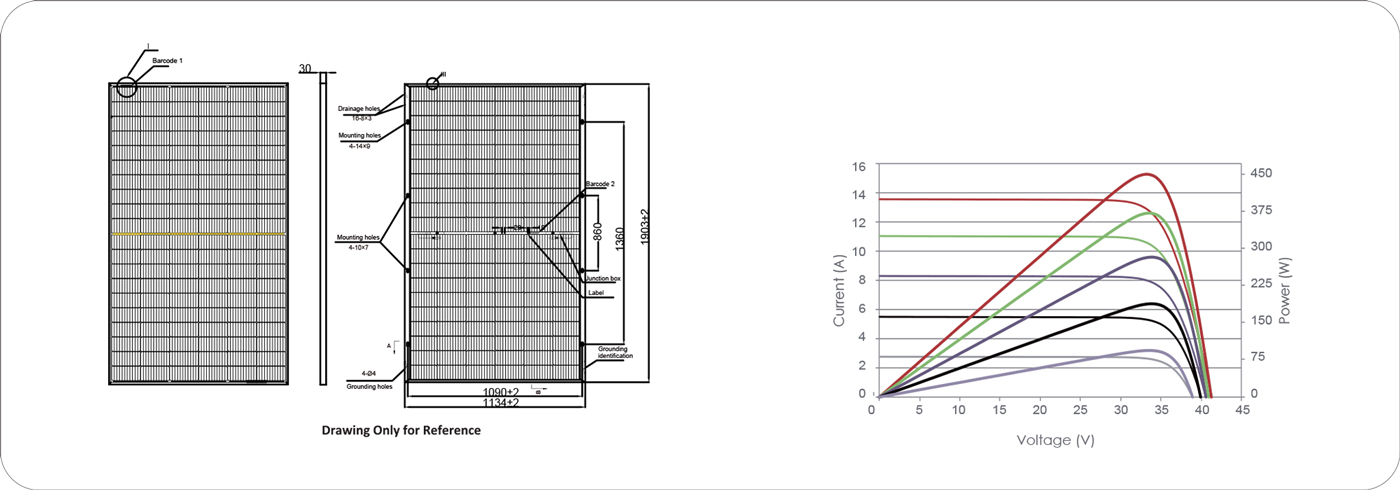

| Installation Hole Location | See Drawing Above |
Characteristics
Temperature Coefficient of VOC | -0.27%/℃ |
Temperature Coefficient of ISC | +0.04%/℃ |
Temperature Coefficient of PMAX | -0.35%/℃ |
Nominal Operating Cell Temperature (NOCT) | 45℃ ± 2℃ |
Remark: Electrical data in this catalog do not refer to a single module and they are not part of the offer. They only serve for comparison among different module types.
Packing Information
Container | 40' HQ |
Pallets per Container | 24 |
Pieces per Container | 864 |
Maximum Ratings
Operating Temperature | -40℃~+85℃ |
Maximum System Voltage | 1500VDC |
Maximum Series Fuse Rating | 30A |
Mainly distributed in countries and regions:Germany, Spain, Italy, Tunisia, France, Netherlands, United Kingdom, Austria, Switzerland, Czech Republic, Sweden, Australia, New ZealandSouth Africa, United Arab Emirates, Argentina, Brazil, Colombia, Canada, Malaysia, Singapore, Thailand, Vietnam, Japan
