MAXIMUM POWER OUTPUT : 575W
POSITIVE POWER TOLERANCE : 0~+3%
MAXIMUM EFFICIENCY : 22.26%
Advanced module technology delivers superior module efficiency
● Gallium-doped Wafer-Non destructive cutting
● MBB half-cut
Excellent power generation performance
● Excellent lAM and Weak light response
● Low temperoture ratings
● 0.40% lineor Power decline
High module quality ensures long-term reliability
● Strict selected material
● Advanced technology
● Leading stondad
Ultra-hydrophilic self-cleaning coating techniques
Power Range
Maximum Power Output
Positive Power Tolerance
Maximum Efficiency
Electrical Characteristics STC | RS6-555NX-E3 | RS6-560NX-E3 | RS6-565NX-E3 | RS6-570NX-E3 | RS6-575NX-E3 |
Maximum Power (Pmax) | 555W | 560W | 565W | 570W | 555W |
Power Tolerance | 0~+5W | 0~+5W | 0~+5W | 0~+5W | 0~+5W |
Module Efficiency | 21.48% | 21.68% | 21.87% | 22.07% | 22.26% |
Maximum Power Current (Imp) | 13.04A | 13.10A | 13.16A | 13.21A | 13.27A |
Maximum Power Voltage (Vmp) | 42.56V | 42.75V | 42.93V | 43.15V | 43.33V |
Short Circuit Current (Isc) | 13.81A | 13.87A | 13.93A | 13.99A | 14.05A |
Open Circuit Voltage (Voc) | 50.77V | 51.01V | 51.24V | 51.48V | 51.71V |
Values at Standard Test Conditions STC (AM1.5, Irradiance 1000W/m², Cell Temperature 25℃)
Electrical Characteristics NOCT | RS6-555NX-E3 | RS6-560NX-E3 | RS6-565NX-E3 | RS6-570NX-E3 | RS6-575NX-E3 |
Maximum Power (Pmax) | 421.0W | 424.0W | 428.0W | 432.0W | 436.0W |
Maximum Power Current (Imp) | 10.51A | 10.56A | 10.61A | 10.65A | 10.70A |
Maximum Power Voltage (Vmp) | 40.06V | 40.15V | 40.34V | 40.56V | 40.75V |
Short Circuit Current (Isc) | 11.13A | 11.18A | 11.23A | 11.28A | 11.33A |
Open Circuit Voltage (Voc) | 48.68V | 48.81V | 49.05V | 49.29V | 49.53V |
NOCT, Irradiance of 800W/m², AM1.5, Ambient Temperature 20℃, wind Speed 1m/s.
Mechanical Characteristics | |
Cell Type | MonoN-Type, 182×182(±1)mm, 144(6×24)Half-Cut cells |
Glass | 3.2mm, High Transmission, Low Iron, Tempered Glass |
Frame | Anodized Aluminum Alloy |
Juction Box | IP68 Rated, With Bypass Diodes |
Dimension | 2278×1134×30mm |
Output Cable | 4 mm²(EU), 300 mm, length can be customized |
Weight | 27kg |

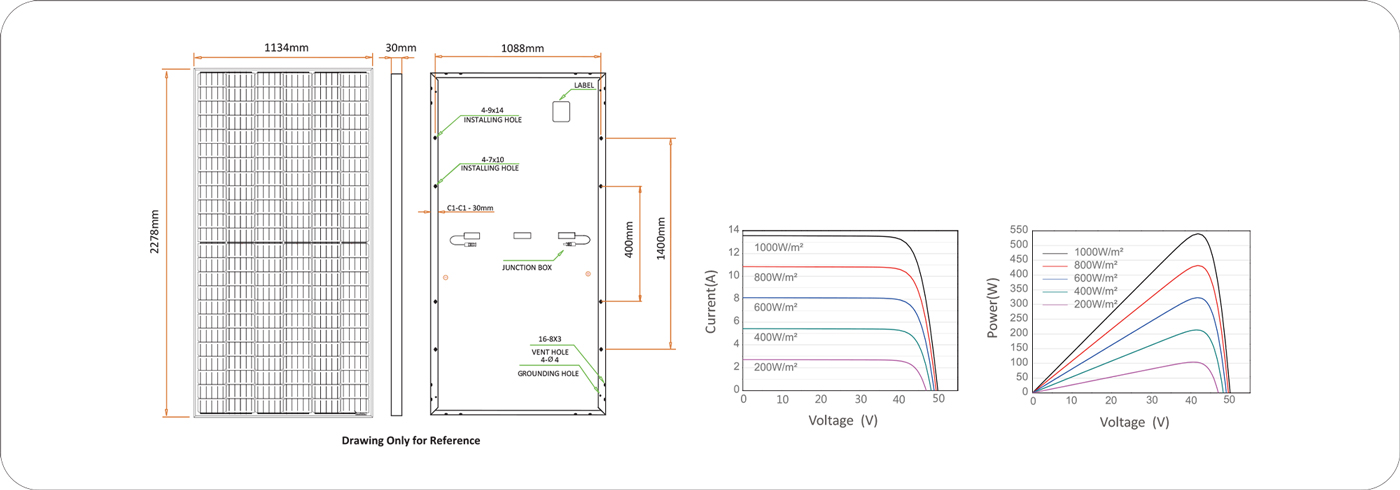

nstallation Hole Location | See Drawing Above |
Characteristics
Temperature Coefficient of VOC | -0.26%/℃ |
Temperature Coefficient of ISC | 0.046%/℃ |
Temperature Coefficient of PMAX | -0.31%/℃ |
Nominal Operating Cell Temperature (NOCT) | 45℃ ± 2℃ |
Remark: Electrical data in this catalog do not refer to a single module and they are not part of the offer. They only serve for comparison among different module types.
Packing Information
Container | 40' HQ |
Pallets per Container | 20 |
Pieces per Container | 720 |
Maximum Ratings
Operating Temperature | -40℃~+85℃ |
Maximum System Voltage | 1500VDC |
Maximum Series Fuse Rating | 25A |
