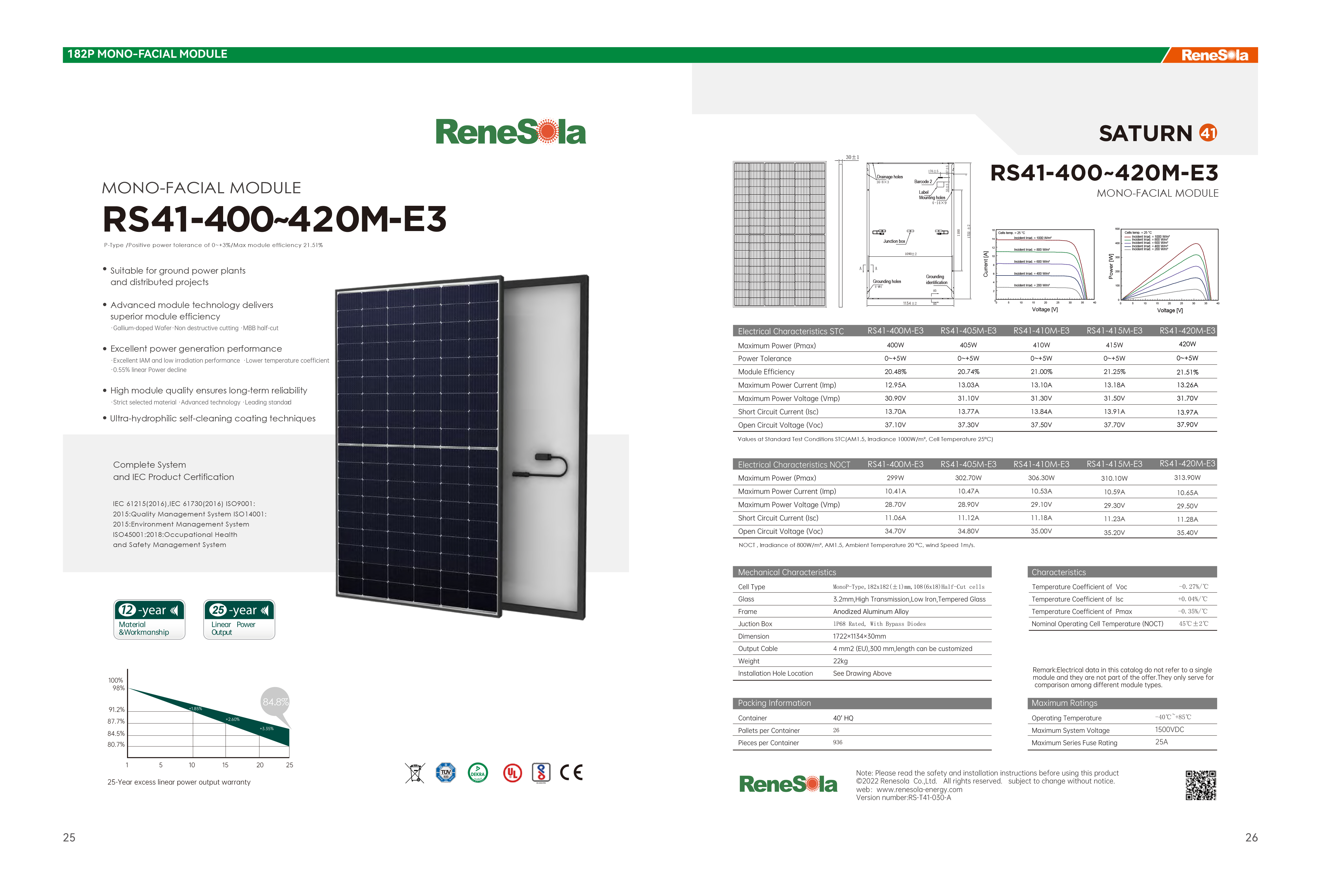

RS41-400~420M-E3Mono-facial Module

MAXIMUM POWER OUTPUT : 420W

POSITIVE POWER TOLERANCE : 0~+3%

MAXIMUM EFFICIENCY : 21.51%


Advanced module technology delivers superior module efficiency

● Gallium-doped Wafer

● Non destructive cutting

● MBB half-cut


Excellent power generation performance

● Excellent lAM and low irradiation performance

● Lower temperature coefficient

● 0.55% linear Power decline

ReneSola


High module quality ensures long-term reliability

● Strict selected material

● Advanced technology

● Leading standad


Ultra-hydrophilic self-cleaning coating techniques

400W~420W

Power Range

420W

Maximum Power Output

0~+3%

Positive Power Tolerance

21.51%

Maximum Efficiency








Electrical Characteristics STCRS41-400M-E3RS41-405M-E3RS41-410M-E3RS41-415M-E3RS41-420M-E3
Maximum Power (Pmax)400W405W410W415W420W
Power Tolerance0~+5W0~+5W0~+5W0~+5W0~+5W
Module Efficiency20.48%20.74%21.00%21.25%21.51%
Maximum Power Current (Imp)12.95A13.03A13.10A13.18A13.26A
Maximum Power Voltage (Vmp)30.90V31.10V31.30V31.50V31.70V
Short Circuit Current (Isc)13.70A13.77A13.84A13.91A13.97A
Open Circuit Voltage (Voc)37.10V37.30V37.50V37.70V37.90V

Values at Standard Test Conditions STC (AM1.5, Irradiance 1000W/m², Cell Temperature 25℃)

Electrical Characteristics NOCTRS41-400M-E3RS41-405M-E3RS41-410M-E3RS41-415M-E3RS41-420M-E3
Maximum Power (Pmax)299W302.70W306.30W310.10W313.90W
Maximum Power Current (Imp)10.41A10.47A10.53A10.59A10.65A
Maximum Power Voltage (Vmp)28.70V28.90V29.10V29.30V29.50V
Short Circuit Current (Isc)11.06A11.12A11.18A11.23A11.28A
Open Circuit Voltage (Voc)34.70V34.80V35.00V35.20V35.40V

NOCT, Irradiance of 800W/m², AM1.5, Ambient Temperature 20℃, wind Speed 1m/s.

Mechanical Characteristics
Cell TypeMonoP-Type, 182x182(±1)mm, 108(6x18)Half-Cut cells
Glass3.2mm, High Transmission, Low Iron, Tempered Glass
FrameAnodized Aluminum Alloy
Juction BoxIP68 Rated, With Bypass Diodes
Dimension1722×1134×30mm
Output Cable4 mm2 (EU), 300 mm, length can be customized
Weight22kg

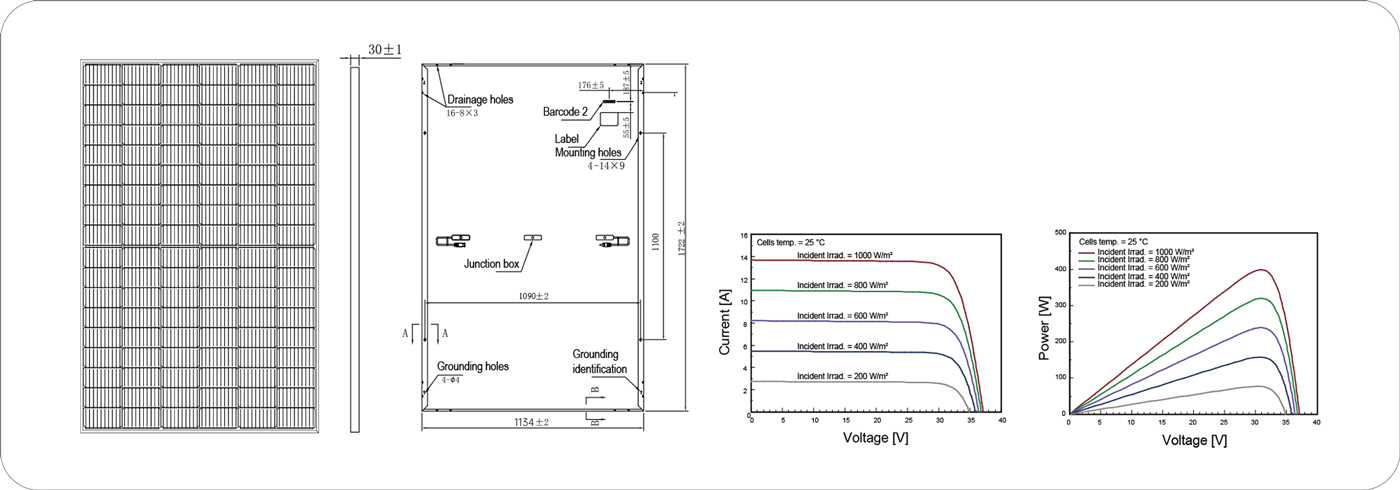

Installation Hole LocationSee Drawing Above

Characteristics

Temperature Coefficient of VOC

-0.27%/℃

Temperature Coefficient of ISC

+0.04%/℃

Temperature Coefficient of PMAX

-0.35%/℃

Nominal Operating Cell Temperature (NOCT)

45℃ ± 2℃

Remark: Electrical data in this catalog do not refer to a single module and they are not part of the offer. They only serve for comparison among different module types.

Packing Information

Container

40' HQ

Pallets per Container

26

Pieces per Container

936

Maximum Ratings

Operating Temperature

-40℃~+85℃

Maximum System Voltage

1500VDC

Maximum Series Fuse Rating

25A


Packing & Delivery

  • 1.jpg

  • 2.jpg

  • 3.jpg

  • 4.jpg

  • 5.jpg

  • 6.jpg

  • 7.jpg

  • 8.jpg

  • 9.jpg

Certifications


Global Network & Service





Mainly distributed in countries and regions:Germany, Spain, Italy, Tunisia, France, Netherlands, United Kingdom, Austria, Switzerland, Czech Republic, Sweden, Australia, New ZealandSouth Africa, United Arab Emirates, Argentina, Brazil, Colombia, Canada, Malaysia, Singapore, Thailand, Vietnam, Japan

  • 11.jpg

    Japan 6MW Ground Power Station Project
    Average Power Generation: 8719800 KWH/Year
    Coal Saving: 3487.9 Tons/Year
    Carbon Dioxide Emission Reduction: 8693.6 Tons/Year
  • 12.jpg

    Tunisia 180KW Household Roof Project
    Average Power Generation: 322600 KWH/Year
    Coal Saving: 129 Tons/Year
    Carbon Dioxide Emission Reduction: 321.6 Tons/Year
  • 13.jpg

    Germany 5KW Household Roof Project
    Average Power Generation: 5492 KWH/Year
    Coal Saving: 2.2 Tons/Year
    Carbon Dioxide Emission Reduction: 5.5 Tons/Year
