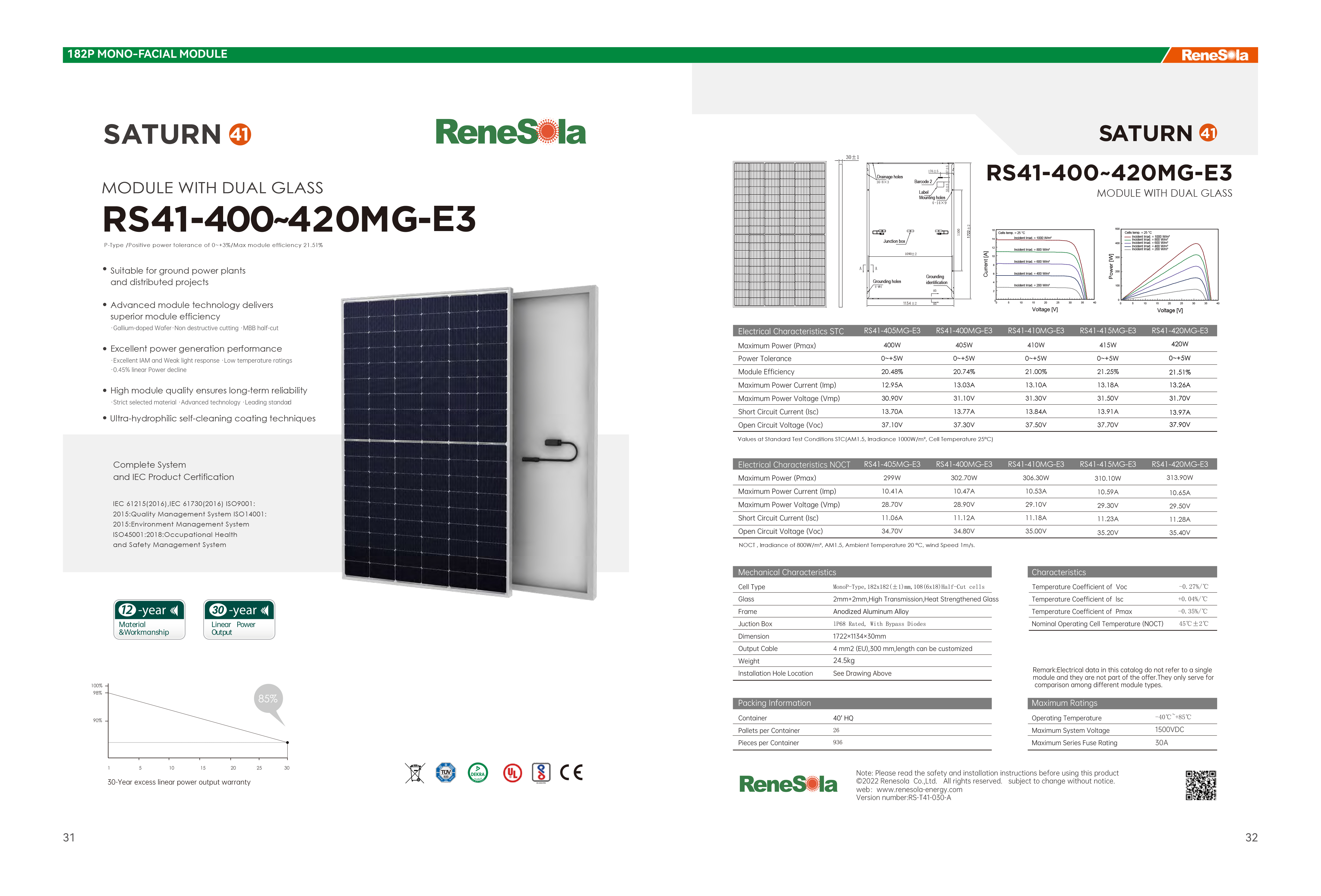

RS41-400~420MG-E3Module With Dual Glass

MAXIMUM POWER OUTPUT : 420W

POSITIVE POWER TOLERANCE : 0~+3%

MAXIMUM EFFICIENCY : 21.51%


Advanced module technology delivers superior module efficiency

● Goallium-doped Wafer

● Non destructive cutting

● MBB half-cut


Excellent power generation performance

● Excellent IAM and Weak light response

● Low temperature ratings

● 0.45% liner Power decline

Module With Dual Glass


High module quality ensures long-term reliability

● Strict selected materiol

● Advanced technology

● Leading standad


Ultra-hydrophilic self-cleaning coating techniques

400W~420W

Power Range

420W

Maximum Power Output

0~+3%

Positive Power Tolerance

21.51%

Maximum Efficiency








Electrical Characteristics STCRS41-405MG-E3RS41-400MG-E3RS41-410MG-E3RS41-415MG-E3RS41-420MG-E3
Maximum Power (Pmax)400W405W410W415W420W
Power Tolerance0~+5W0~+5W0~+5W0~+5W0~+5W
Module Efficiency20.48%20.74%21.00%21.25%21.51%
Maximum Power Current (Imp)12.95A13.03A13.10A13.18A13.26A
Maximum Power Voltage (Vmp)30.90V31.10V31.30V31.50V31.70V
Short Circuit Current (lsc)13.70A13.77A13.84A13.91A13.97A
Open Circuit Voltage (Voc)37.10V37.30V37.50V37.70V37.90V

Values at Standard Test Conditions STC (AM1.5, Irradiance 1000W/m², Cell Temperature 25℃)

Electrical Characteristics NOCTRS41-405MG-E3RS41-400MG-E3RS41-410MG-E3RS41-415MG-E3RS41-420MG-E3
Maximum Power (Pmax)299W302.70W306.30W310.10W313.90W
Maximum Power Current (Imp)10.41A10.47A10.53A10.59A10.65A
Maximum Power Voltage (Vmp)28.70V28.90V29.10V29.30V29.50V
Short Circuit Current (Isc)11.06A11.12A11.18A11.23A11.28A
Open Circuit Voltage (Voc)34.70V34.80V35.00V35.20V35.40V

NOCT, Irradiance of 800W/m², AM1.5, Ambient Temperature 20℃, wind Speed 1m/s.

Mechanical Characteristics
Cell TypeMonoP-Type, 182x182(±1)mm, 108(6x18)Half-Cut cells
Glass2mm+2mm, High Transmission, Heat Strengthened Glass
FrameAnodized Aluminum Alloy
Juction BoxIP68 Rated, With Bypass Diodes
Dimension1722×1134×30mm
Output Cable4 mm2 (EU), 300 mm, length can be customized
Weight24.5kg

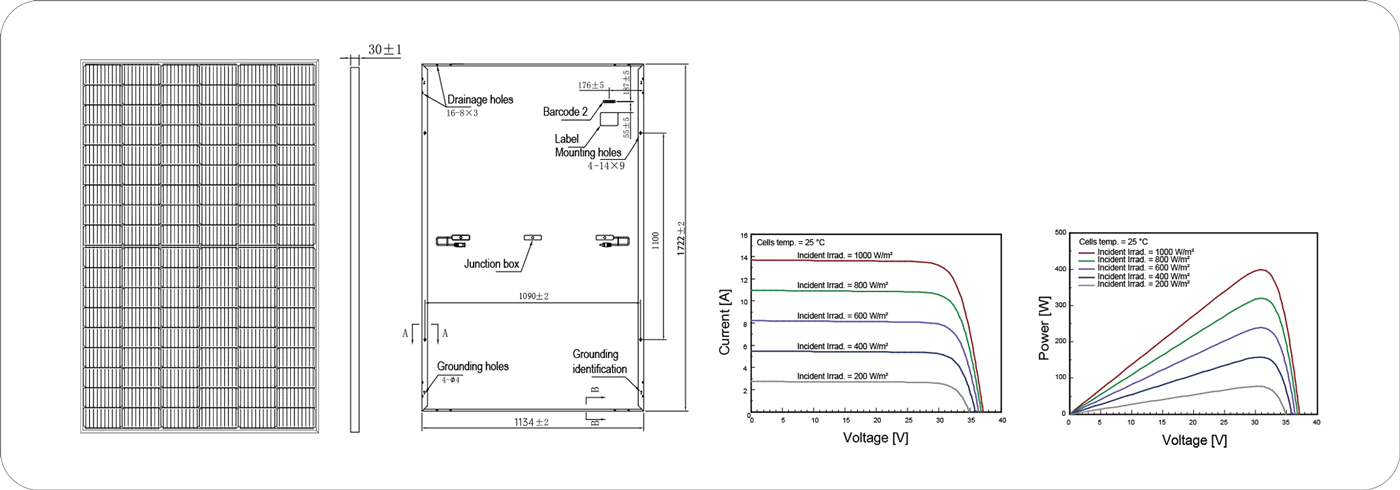

Nstallation Hole LocationSee Drawing Above

Characteristics

Temperature Coefficient of VOC

-0.27%/℃

Temperature Coefficient of ISC

+0.04%/℃

Temperature Coefficient of PMAX

-0.35%/℃

Nominal Operating Cell Temperature (NOCT)

45℃ ± 2℃

Remark: Electrical data in this catalog do not refer to a single module and they are not part of the offer. They only serve for comparison among different module types.

Packing Information

Container

40' HQ

Pallets per Container

26

Pieces per Container

936

Maximum Ratings

Operating Temperature

-40℃~+85℃

Maximum System Voltage

1500VDC

Maximum Series Fuse Rating

30A
